Description
The beautiful Castile Pellet Insert delivers enough warmth to heat most living rooms, great rooms and family rooms. Even better, it’s efficient, self-lighting and easy-to-use. Define your favorite room; let the Castile provide the style and comfort.
- 30,600 BTUs — heats 700 to 1,800 square feet, based on climate and home efficiency
- EPA certified, with low emission levels of 1.1 grams per hour
- 45lb hopper capacity
- Patented feed system for jam-free operation
- Easy-clean firepot
Model Specifications
| Appliance Width | 32-1/4″ |
|---|---|
| Appliance Height | 24-3/4″ |
| Appliance Depth1 | 23-5/8″ |
| Extension Onto Hearth | 10-3/8″ |
| Fuel Type | Pellet |
| BTU/hr Input2 | 9,400 – 30,600 |
| Heating Capacity3 | 700 – 1,900 sq ft |
| Viewing Area | 106 sq in |
| Efficiency5 | LHV 70%, HHV 66% |
| Emissions | 1.1 grams/hour |
2 BTU/hr Input based on maximum feed rate per hour multiplied by approximately 8600 BTU, which is average BTU from a pound of pellets.
3 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.
5 Weighted average LHV (Low Heating Value) & HHV (High Heating Value) efficiencies using data collected during EPA emissions test. HHV efficiency over 75% qualifies for the Federal Tax Credit.
Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner’s manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner’s/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.

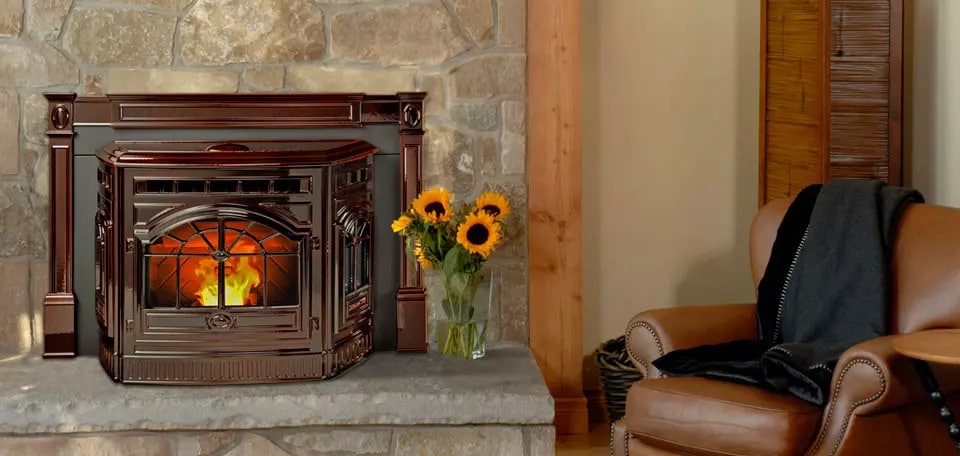

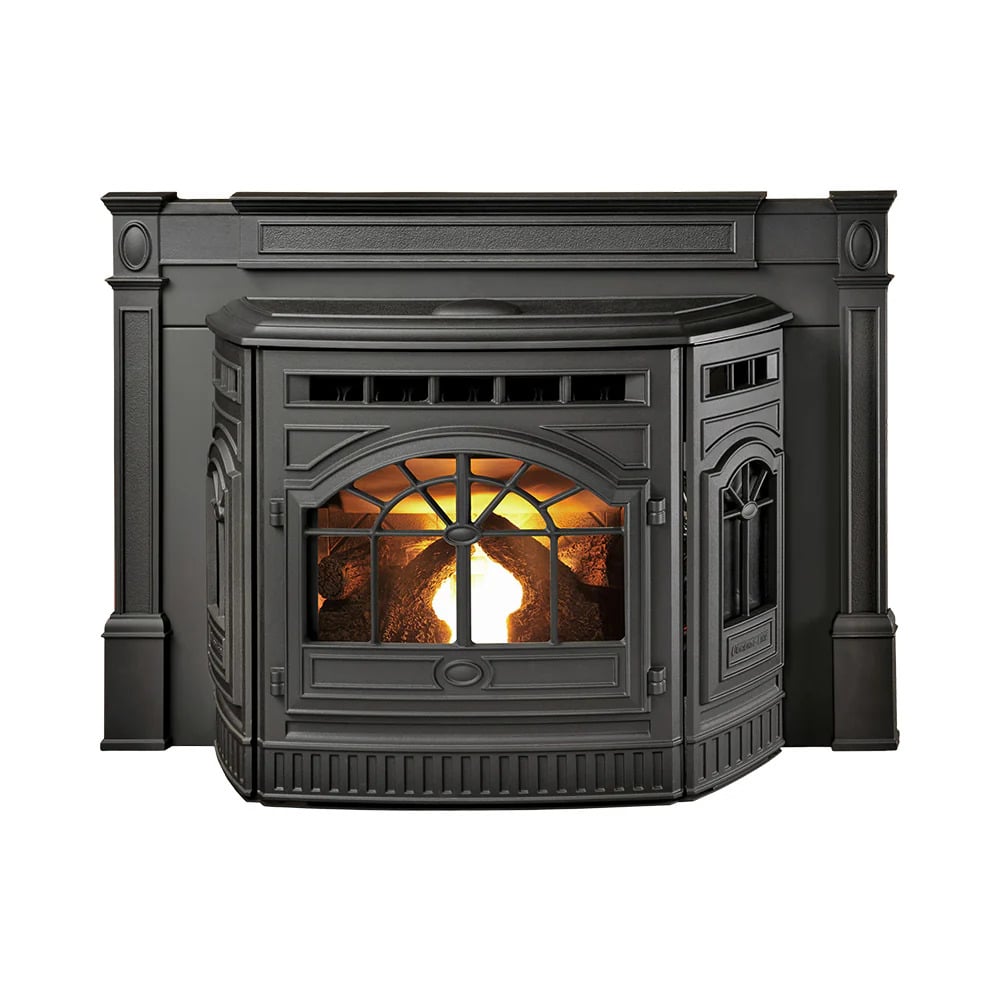

Castile Pellet Insert
Controls
Have complete control over your fire. Controls listed are tested and approved for recommended use with the hearth systems indicated.
Smart Stat
|
Standard Programmable Wall Thermostat
|
Insert Finish
Available finishes.
Classic Black
|
Porcelain Twilight
|
Porcelain Mahogany
|
Shelves
The wood shelf mantel is available in 48”, 59” or 72” lengths and with designs that accent any room. Supercast™ concrete is the perfect non-combustible material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.
Baxter Mantel Shelf
|
Crosby Mantel Shelf
|
Fillmore Mantel Shelf
|
|
Ozark Mantel Shelf
|
Cove Gray Mantel Shelf – Non-Combustible
|
Midnight Mist Mantel Shelf – Non-Combustible
|
White Mantel Shelf – Non-Combustible
|
Tavern Brown Mantel Shelf – Non-Combustible
|
Washed Cedar Mantel Shelf – Non-Combustible
|
Weathered Barnwood Mantel Shelf – Non-Combustible
|
